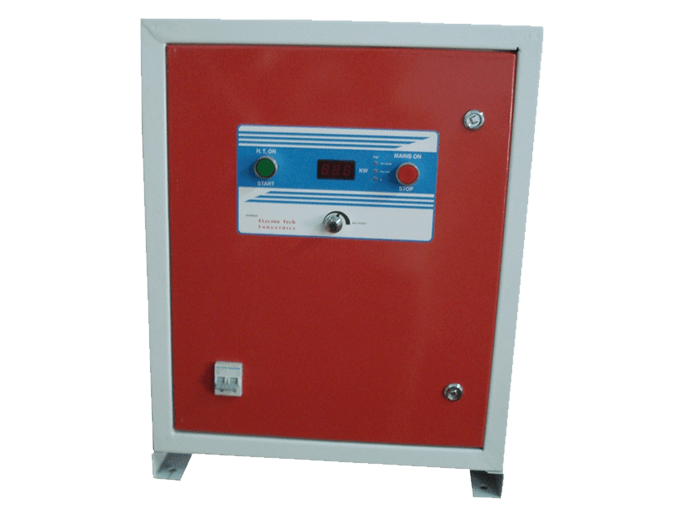

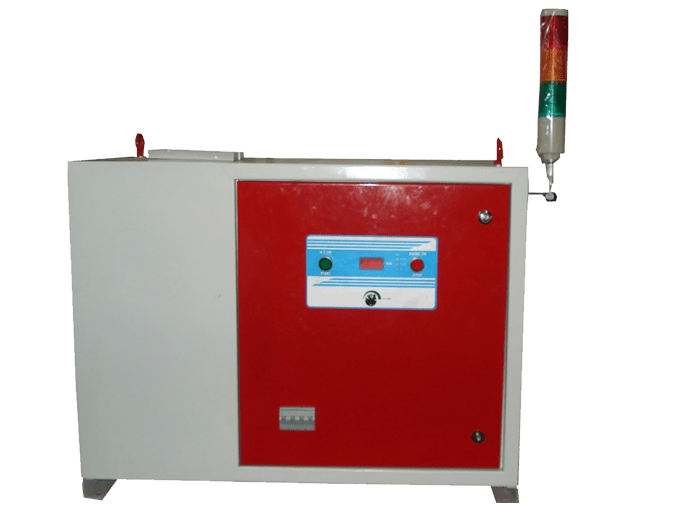

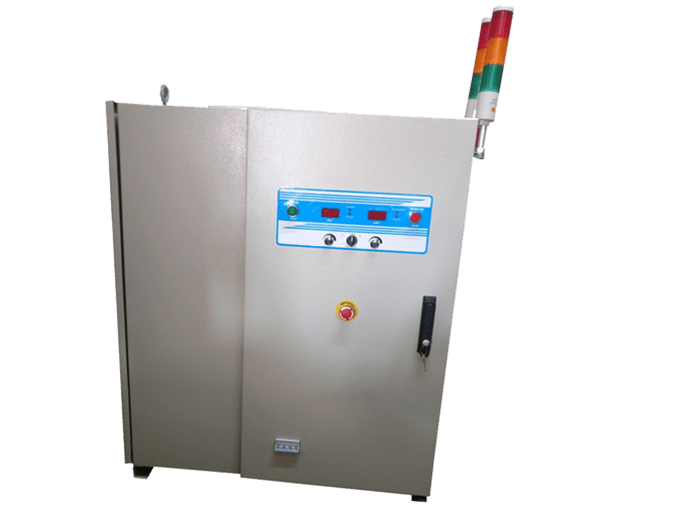

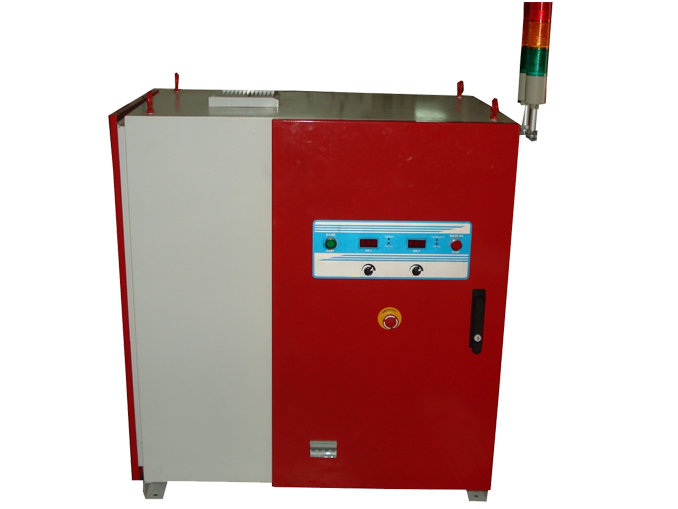

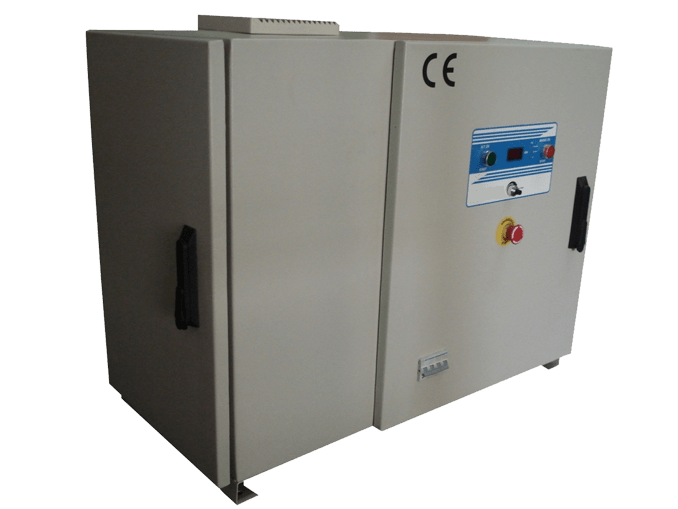

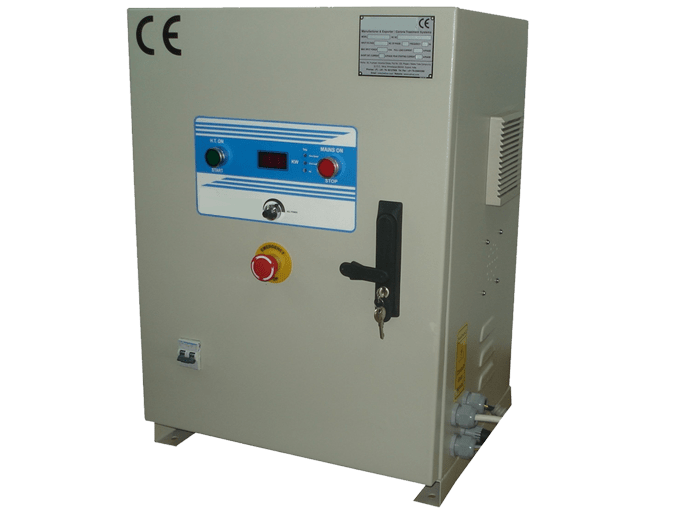

Generator Panels
The Electro Tech Inc. ETC SERIES Generator panel is designed with latest IGBT technology with specific designed driver for intelligent driving of IGBT. This specific technology give long life of operation of IGBT at very high power and with safe shutdown of it with proper fault signals.
The ETC series generator panels are designed to operate on 24X7 basis under harsh extreme environmental conditions prevailing in plant areas.
Technical Details
- Input Voltage: 230 V AC/ 1 phase ,415V AC / 3-hase ± 10%
- Input Frequency 50 Hz, 60 Hz
- Output Power Range: 0.5 KW to 30 KW
- Output Frequency: 10 KHz – 50 KHz
- Output DC Voltage: steady 300V- 600V
Safety Features
- Zero Speed Trip.
- Assembly/ Panel door open H..T. Interlocak
- Short Ckt./ Overload Trip
- Over Temp. Trip
- Ozone Suction Blower Fail Trip
- Over / Under Voltage Trip
Salient Features
- Manual Power Control Model
- Latest IGBT Technology with PWM
- Operation at Resonant Mode
- Fine control of treatment power with ten turn power control knob.
- Digital Display of Output power
- Speed Synchronisation Mode
- Pulse Block / Zero Speed Trip Mode
- Easy to Operate Push Buttons for Start/Stop with Digital Display of Power.
- Zero Spark and Auto open assembly/electrode in case of web break
- Optional start/stop control from extruder platform or for master control of plant
- Modular approach as per electronics function makes maintenance of panel cost effective
- Single/Three Stack Tower Light on Panel for different status and alarm conditions
- AC Cooled panel for High Power Output.
- Light Weight and Compact , Powder Coated Panel.
